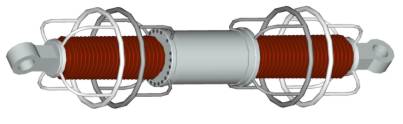

Austin Guy Insulator: High Voltage Fail Safe

  • Two electrical sizes are available with recommended maximum RF wet working voltages of 75 and 40 kV rms, respectively.
  • Insulator type is applicable where high voltage fail safe design is specified.
  • Failure of the inner ceramic load bearing element allows the engagement of the internal metal fittings and maintains the mechanical integrity of the guy line.






  Specifications


Insulator Type
Maximum Recommended Working Load
Insulator Type
Maximum Recommended Working Load
CH-006/S
10,500 lb
(4,763 kg)
CH-040/S

90,000 lb
(40,823 kg)
CH-008/S
18,000 lb
(8,165 kg)
CH-056/S
125,000 lb
(56,699 kg)
CH-013/S
28,000 lb
(12,701 kg)
CH-078/S
175,000 lb
(79,379 kg)
CH-018/S
40,000 lb
(18,144 kg)
CH-100/S
225,000 lb
(102,058 kg)
CH-027/S
60,000 lb
(27,216 kg)
CH-123/S
275,000 lb
(124,738 kg)





Notes:

  1. Maximum recommended working loads are based on a minimum factor of safety of 3 : 1.
