Austin Base Insulators for Self Supporting Radio Towers and Masts
TYPES A-2913(-C), A-3782(-C), A-4049(-C)

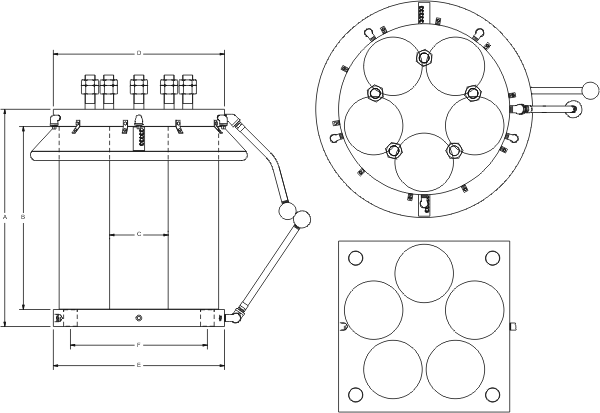

  Dimensions

Type A B C D E F Mast Fixing Insulator Mounting Net Weight
A-2913 37"
940 mm		 32"
813 mm		 10.25"
260 mm
dia.		 24"
610 mm
dia.		 24"
610 mm
dia.		   6 studs
6" (152mm) long
1-1/4" (32mm)
dia. 12 TPI
on 19" (483mm)
BCD		 6 studs
6" (152mm) long
1-1/4" (32mm)
dia. 12 TPI
on 19" (483mm)
BCD		 1040 lb
470 kg
A-2913-C 37"
940 mm		 32"
813 mm		 10.25"
260 mm
dia.		 24"
610 mm
dia.		 24"
610 mm
square		 19"
483 mm		 6 studs
6" (152mm) long
1-1/4" (32mm)
dia. 12 TPI
on 19" (483mm)
BCD		 4 holes drilled
2" (51mm)
square base		 1130 lb
510 kg
A-3782 38"
965 mm		 32"
813 mm		 10.25"
260 mm
dia.		 30"
762 mm
dia.		 30"
762 mm
dia.		   5 studs
6" (152mm) long
1-3/4" (44mm)
dia. 12 TPI
on 18" (457mm)
BCD		 5 studs
6" (152mm) long
1-3/4" (44mm)
dia. 12 TPI
on 18" (457mm)
BCD		 1900 lb
860 kg
A-3782-C 38"
965 mm		 32"
813 mm		 10.25"
260 mm
dia.		 30"
762 mm
dia.		 30"
762 mm
square		 24"
610 mm		 5 studs
6" (152mm) long
1-3/4" (44mm)
dia. 12 TPI
on 18" (457mm)
BCD		 4 holes drilled
2-3/8" (60mm)
square base		 1950 lb
885 kg
A-4049 39"
991 mm		 32"
813 mm		 11"
279 mm
dia.		 38"
965 mm
dia.		 38"
965 mm
dia.		   6 studs
6" (152mm) long
2" (51mm)
dia. 12 TPI
on 24" (610mm)
BCD		 6 studs
6" (152mm) long
2" (51mm)
dia. 12 TPI
on 24" (610mm)
BCD		 2600 lb
1180 kg
A-4049-C 39"
991 mm		 32"
813 mm		 11"
279 mm
dia.		 38"
965 mm
dia.		 38"
965 mm
dia.		   3 studs
3-1/2" (89mm) long
1" (25mm)
dia. 14 TPI
on 8" (203mm)
BCD		 6 holes drilled
2-5/8" (67mm)
dia. on
32-1/2" (826mm)
PCD		 2600 lb
1180 kg



  • All Austin Insulator bases are designed for VLF, LF, and MF use, and are conservatively rated. Choose the unit that will meet your requirements for working download, working uplift, shear and RF operating voltage.
  • If you have a requirement which we do not seem to meet or you wish us to recommend a suitable insulator, please contact us and supply us with as much relevant information as possible.
